Gas-to-Power

Today, almost 1 billion people are living in the dark, without any form of electricity. The predicted growth in the world’s population will demand over 50% increase in electricity over the next 25 years, especially in Asia Pacific, China, and Africa.

Global energy demand, particularly in emerging markets, where current generation capacity is insufficient, has created the need for fast large-scale solutions, which can not be met by renewable energy sources alone.

Discuss your gas-to-power project

Why LNG ?

Floating marine technology and changes in the market have enabled the LNG value chain to be realised in the form of LNG to Power projects. LNG trading and effective sales models have helped to support the global reach of natural gas to power industries and communities whose growth would otherwise be hampered by the lack of energy infrastructure.

The most effective solution to deliver power to growing nations is with LNG, because LNG is easy to transport and it will allow for independence from gas pipeline infrastructure.

Receiving and Unloading LNG from Ships

LNG may be transported in small volumes by rail or truck, however transportation by ship is by far the most common way to carry larger volumes of LNG.
Shipping is a crucial part of the LNG value chain, and the ability to offload and reload LNG in a time-efficient and safe manner ensures the robustness of a global energy network, connecting supply side - liquefaction plants, and demand - regasification facilities and local distribution networks.

Photo courtesy of Hoegh LNG

ECONNECT's Gas-To-Power Solutions

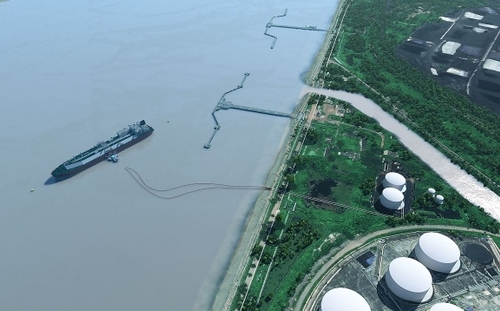

Onshore Terminal

Low investment risk: Cut capital spending significantly by avoiding large river, harbour or coastal engineering works.
Shorter lead time: Delivery within 12 months. Can be pre-fabricated and installed at site within days.
Small environmental impact: Platform can be moored close to shore and hoses reeled while not in operation. No seabed interaction.
Typical applications: Power generation from 50 to 350 MW
Why Jettyless? Avoid permitting delays due to small environmental impact with a floating system.

Floating Storage Unit (FSU)

Cost effective: An existing ship can be converted to an FSU, hence the full LNG terminal can be up and running within 12-16 months.
Optimising real estate: LNG storage is located offshore and sends LNG to regasification plant onshore.
Flexible: Both storage and transfer assets can easily be relocated should the local power demand change over time.
Typical applications: Power generation from 250 to 1,000 MW
Why Jettyless? Increase the operational envelope of the FSU, improving system uptime with a conventional mooring system.

Floating Storage & Regasification Barge (FSRB)

Eliminating Dredging: A combination of FSRB with the IQuay means that first gas can be provided in less than 24 months, at a fraction of the cost.
Optimising on real estate: LNG unloading through the IQuay and storage via the FSRB is located offshore and sends LNG to regasification facilities onshore, hence a terminal can be established at locations where land area is scarce.
Typical applications: Power generation from 100 - 350MW
Why Jettyless? Increase the operational envelope of the FSU, improving system uptime with a conventional mooring system.

Floating Storage and Regasification Unit (FSRU)

Fast-track: solution which can be fast-tracked to supply gas direct into domestic gas networks
Flexible: FSRU's are often deployed with a long-lease charter due the high initial CAPEX. If re-deployed, new marine berth will need to be constructed.
Cost effective: ECONNECT has developed an offloading solution for sending high pressure gas to shore direct from the FSRU, without the need for fixed infrastructure.
Typical applications: Power generation from 350 to 1,500 MW.
Why Jettyless? Reduce CAPEX, increase uptime and efficiency in emergency release procedure with a dedicated transfer skid mounted to the FSRU’s hull.

Floating transfer solutions for every type of terminal

Implementing the IQuay means: no need for a jetty, quay, loading platform, breasting dolphins, mooring dolphins, or personnel/pipe bridge to shore.
LNG storage and regasification can be moved offshore if real estate is limited.
The IQuay can be re-deployed to other locations should there be a change in energy demand.

IQuay™ Technical Highlights

The IQuay enables transfer of LNG between a vessel and storage facilities and is fully qualified by DNV GL.

Distance from shore
50 - 800 m

Environment
Sheltered to harsh conditions

Flowrate
100 - 2,500 m3/h

Transfer lines
Floating cryogenic hoses

Carrier vessel size
1,000 - 266,000 m3

Design life
25 years

We have leveraged on the Standard IQuay qualified design to develop solutions for large scale LNG import and export between ship & shore.

Distance from shore
50 - 800 m

Environment
Sheltered to harsh conditions

Flowrate
2,500 - 12,000 m3/h

Transfer lines
Floating cryogenic hoses

Carrier vessel size
Up to 266,000 m3

Design life
25 years

Learn more about Jettyless Transfer

Traditional Jetty vs Jettyless

We take a look at traditional LNG import and export infrastructures and explain why jettyless can enable energy projects across the globe.

LNG Terminals

With several different types of terminal configurations, we give you the knowledge to secure the most competitive solution.

Floating Transfer Solutions

Energy sustainability and conservation of marine biodiversity are key to a healthier future. Learn more about what floating transfer solutions can accomplish.

A selection of our customers and industry partners

With proprietary technology suitable for ammonia, CO₂, hydrogen, LNG, and more, ECONNECT Energy is engaged in international projects:

Serving the upstream, midstream, downstream and bunkering sectors;
Decarbonising shipping, power generation and mobility;
Where affordable and agile solutions are required;
In environmentally and socially fragile areas with low-footprint technology.

We are dedicated to fulfilling your project goals and de-risking your marine infrastructure

ECONNECT Energy was founded to address the challenges and inefficiencies of traditional LNG offloading methods from ship to shore. Our core offerings remove the need for fixed and permanent infrastructure, such as quays, jetties, trestle structures and loading platforms, and our technology also transfers ammonia and liquid CO₂.
‍
Dredging and marine construction, which are both expensive and damaging to coastal areas, can be eliminated with ECONNECT Energy’s floating jettyless transfer solution.
